Sail  Boat Instruments
 Moor Electronics is pleased to present its EMS line of high quality marine instruments.

Our engineering and  technical staff have over 14 years experience in the design and manufacture of electronic  marine equipment. Our company is dedicated to the idea that instruments can be produced  with reliability, accuracy, and economy.

We at Moor would like to assure our customers of our commitment to  produce only the very finest equipment at reasonable prices and to provide prompt service  if anything should happen in the course of its use. Specifically, we give a full one year  limited warranty on all of our products and provide a complete service and parts  department, to assure you of a sound investment both now and in the future.

WIND - All wind instruments come complete  with corrosion resistance sensors, cables, and connectors.

Click the links below to see images

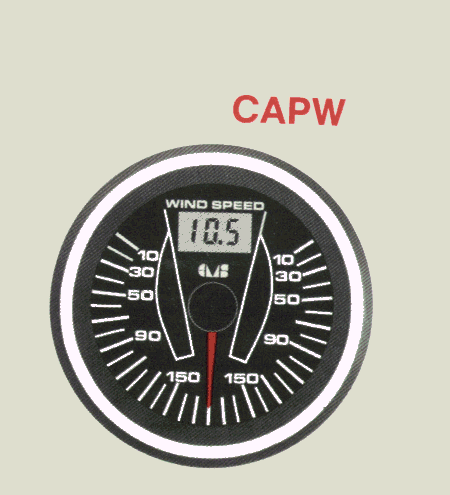

CAPW - Apparent  Wind & Digital Windspeed.

  • Direction 10 degrees port to 10 degrees starboard.
  • Liquid crystal windspeed display 0.0 to 99.9 knots.
  • Single integrated mast unit with cable.
  • 12 volt DC w/night light.

API - Apparent  Wind.

  • Direction 10 degrees port to 10 degrees starboard.
  • Mast unit w/cable will accommodate model WSI windspeed  sensor.
  • 12 volt DC w/night light.

AWS - Apparent  Wind Windspeed Combination.

  • Direction 10 degrees port to 10 degrees starboard.
  • Windspeed 0 to 60 knots.
  • Remote function switch.
  • Single integrated mast unit with cable.
  • 12 volt DC w/night light.

WSI- Windspeed.

  • 0 to 60 knot range.
  • Self-powered.
  • Stand alone mast unit or combine with model API.
  • 12 VDC for night light only.

BOAT SPEED LOG - All knot meter units come  complete ready to install, with removable thru-hull transmitters.

U25K - Knotmeter

  • 0-10 knots (mph) scale.
  • Self-powered.
  • Simple 2-wire installation.
  • 16-year proven design.
  • Economically priced.
  • Patented non-fouling turbo blade lower unit.
  • With night light.

U25KL - Knotmeter  - Log

  • Same as model U25K with total log to 9999.99.
  • 12 volt DC w/night light.

GTK II - Dual  Range Knotmeter

  • Same as model GTKL II without distance log.

GTKL II - Dual  Range Knotmeter - Log.

  • 0-4 and 4-12 knots (mph) ranges.
  • Fully autoranging.
  • High sensitivity.
  • On dial LED range indicator.
  • Electronic log reset.
  • Distance log to 9999.99.
  • 1/100 mile log resolution.
  • Patented non-fouling turbo blade lower unit.
  • 12 volt DC w/night light.

LKD - Knotmeter

  • Large Liquid Crystal Display.
  • 0.0 to 60.0 knots (mph) range.
  • 1/10 knot (mph) resolution.
  • Automatic averaging.
  • One second update.
  • Patented non-fouling turbo blade lower unit.
  • 12 volt DC w/night light.

KCL - Knotmeter  - Log

  • Large Liquid Crystal Display.
  • 0.0 to 60.0 knots (mph) range.
  • 1/10 knot (mph) resolution.
  • Automatic averaging.
  • One second update.
  • Distance log to 9999.99
  • 1/100 mile log resolution.
  • Patented non-fouling turbo blade lower unit.
  • 12 volt DC w/night light.

DEPTH

LDC - Depth  Sounder

  • Large Liquid Crystal Display.
  • 3 to 200 feet range.
  • 1/10 foot resolution.
  • Variable shallow water alarm.
  • Automatic gain control.
  • Flush mount transducer.
  • 12 volt DC w/night light.

Case Mounting Diagram

Specifications: Thru-hull Mount
View One | View Two

Speed Transmitter Location
